The Delta WASP 2040 Clay is a compact professional clay 3D printer which prints up to 40 cm in height. Made in Italy with a clean design and compact dimensions. The Aluminium and Steel structure guarantees stability and precision, obtaining quality prints with dense fluid materials. The LDM WASP Extruder XL 3.0 is ideal for fast and large prints.

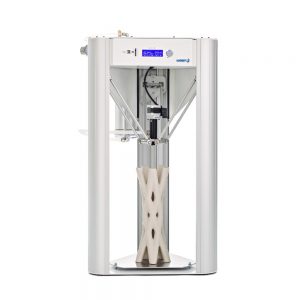

DeltaWASP 2040 CLAY
Our Delta WASP 2040 Clay is the ideal equipment for clay printing. Accurate and fast using all ceramic materials. Our ceramic 3D Printers are open and accessible on all three sides for user interaction.
Technical Specifications
3D PRINTING INFORMATION
Build volume Ø200 x height 400 mm
Minimum layer height: 0,5 mm;
Maximum print speed: 150 mm/s;
Maximum travel speed: 150 mm/s;
Acceleration: 500 mm/s2;
MATERIALS
Material: ceramic mixtures including but not limited to
Clay
Porcelain
Sandstone
Earthenware
also different colours and mixtures
CONFIGURABLE TOOLS
LDM WASP extruder 3.0: with 1.5, 2, 3 mm nozzles (standard)
Luer lock nozzle adapter with conical nozzles: 1.2mm, 1.5mm
SOFTWARE
Operative systems Windows, Mac, Linux
Official Slicing: Simplify3D®
Compatible Slicing: Cura, Slic3r and PrusaSlicer
File type .stl, .obj, .gcode
INTERFACE
SD cards
LCD screen
PHYSICAL DIMENSIONS
Printer Dimensions ; 49 cm x 44 cm x 87 cm
Machine weight ; 40 kg
Dimensions and weight for the cardboard packaging 50 cm x 58 cm x 101 cm, weight 50 kg
POWER AND AIR COMPRESSOR REQUIREMENTS
Input 220/240 V 50/60 Hz
Consuming power: Approx. 180W
NOTE.: Air compressor is not supplied.
Air Compressor – min. pressure of 8 bar and 50 litres is needed
You will also need a Nylon Tube to a length you specify.
You can buy it from the hardware store as it is 8mm OD or 5/16” External Diameter Nylon Tubing
So if your compressor is in another room, buy some longer tubing.
Operating Temperature
Printer to be used between 20-30 C°
Storage in warehouse 0-30 C°
MECHANICS
Frame and cover is Aluminium with Painted Steel outer plates
Wooden Multi Layer print bed
Movement
– Precision Nylon wheels on anodized Aluminium extrusions
– Steel cored TPU belts.
Motors – High Quality NEMA 17 Stepper
INCLUDED MATERIAL
LDM WASP extruder 3.0 with nozzle in metal diam. 1.5, 2, 3 mm.
A large 3 Litre Tank for the Clay Mixture
Print bed made from Marine Plywood
12.5 kg of Red Earthenware
AU Power cable
Packaging for national shipping in a cardboard box approximately 58 cm x 50 cm x 101 cm
EXTRA FEATURES
RESURRECTION SYSTEM (cc)
If the power gets interrupted at any stage in the print, when the power comes back on again the printer will restart heating the hot-end and heat-bed then the 3d print, in the same place the power cut out.
Read more about RESURRECTION SYSTEM
FREE Z SYSTEM (cc)
In the case of an interruption, it’s possible to measure the height of your print and simply enter that height into the Free Z System in the display menu and restart the print from that exact height.
WASP TECHNICAL INNOVATIONS
Our screw extruder has a precisely controlled dosage thanks to our screw design
Controlled air pressure for the printer
Perfect stability thanks to new sliding-system on bearings

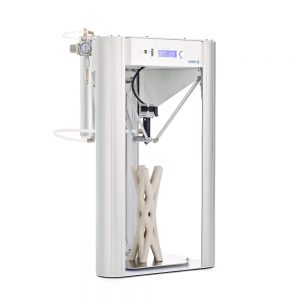

Compressed Air pipe connection is now integrated into the printer
Dedicated Firmware
