Technical Specifications
3D PRINTING INFORMATION
Build volume Ø200 x height 400 mm
Minimum layer height 50 micron
Print speed max(*) 500 mm/s
Travel speed max(*) 800 mm/s
Acceleration(*) 15.000 mm/s2
Bed temperature max 110 C°
Extruder / Nozzle diameter standard WASP SPITFIRE RED Extruder with LT cartridge and a Nozzle 0,4 mm
* All data relative to speed is referenced from the Delta WASP 2040 PRO with WASP SPITFIRE RED Extruder 0.4, these speeds are maximums and depend heavily on your 3d model/design geometry.
MATERIALS
Suitable filament size is Ø1.75
PLA
PETG
ABS
PA Carbon
CONFIGURABLE TOOLS

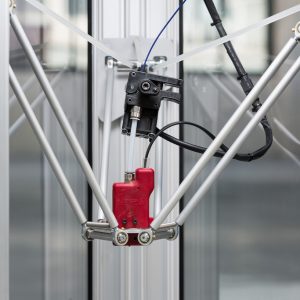

RED SPITFIRE Extruder for high-quality and fast prints
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
LDM WASP Extruder for dense-fluid materials
Nozzle diameter: 1.2 mm
SOFTWARE
Operative systems Windows, Mac, Linux
Official Slicing: Simplify3D®
Compatible Slicing: Cura, Slic3r and PrusaSlicer
File type .stl, .obj, .gcode
INTERFACE
SD cards
LCD screen
PHYSICAL DIMENSIONS
Printer Dimensions ; 49 cm x 44 cm x 87 cm
Machine weight ; 25 kg
Dimensions and weight for the cardboard packaging 50 cm x 58 cm x 101 cm, weight 30 kg
POWER REQUIREMENTS
Input 220/240 V 50/60 Hz
Consuming power :
Hotend and WASP SPITFIRE RED Extruder – max 60W
Heated bed – max 500 W
OPERATING TEMPERATURE
Printer to be used between 20-30 C°
Storage in warehouse 0-30 C°
MECHANICS
Frame and cover Aluminium, Polycarbonate and PMMA.
Post machined Aluminium print bed
MOVEMENT
– Precision Nylon wheels on anodized Aluminium extrusions
– Steel cored TPU belts. Resistant to high temperature
Motors – High Quality NEMA 17 Stepper
EXTRA FEATURES
RESURRECTION SYSTEM (cc)
If the power gets interrupted at any stage in the print, when the power comes back on again the printer will restart heating the hot-end and heat-bed then the 3d print, in the same place the power cut out.
Read more about RESURRECTION SYSTEM
FREE Z SYSTEM (cc)
In the case of an interruption, it’s possible to measure the height of your print and simply enter that height into the Free Z System in the display menu and restart the print from that exact height.
Read more about FREE Z SYSTEM
SUSPENDED BOWDEN (cc)
With the extruder motor being “suspended” by the hanging rubber-bands, this removes the weight from the “Bowden” tubing above the hotend. This allows the printhead to move at a much faster speed without reducing the print quality.
Read more about SUSPENDED BOWDEN
INCLUDED MATERIAL
1kg of PLA on a spool
AU Power cable
Packaging for national shipping in a cardboard box approximately 58 cm x 50 cm x 101 cm
Delta WASP 2040 PRO tools
Delta WASP 2040 PRO is available with:
WASP SPITFIRE RED Extruder for fast and high-quality prints.
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)

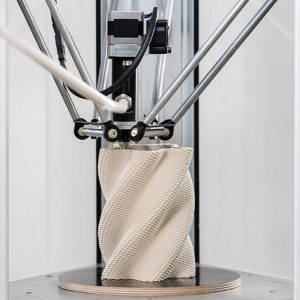

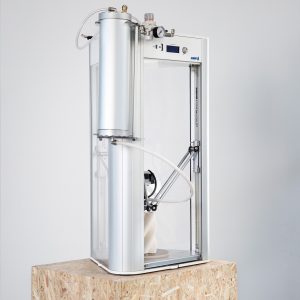

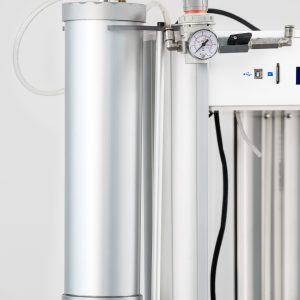

LDM WASP Extruder, extruder for ceramic materials. Nozzle diameter: 1.2 mm.
