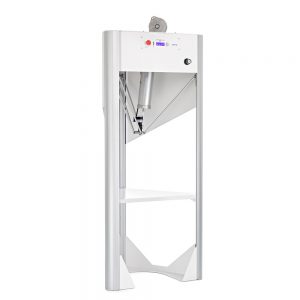

Accurate and fast using all ceramic materials. Our ceramic 3D printers are open and accessible on all three sides for user interaction. The Delta WASP 40100 Clay can print directly on the floor or on a printing surface like removable steel or Marine grade Plywood. You can also continue printing without waiting for the piece to dry but simply moving the printer to the new position. The Aluminium and Steel structure guarantees stability and precision, obtaining quality prints with dense fluid materials.
The LDM WASP Extruder XL 3.0 is ideal for fast and large prints.
Technical Specifications
3D PRINTING INFORMATION
Printing volume: Ø 400mm x h 1000 mm for one large part or, use the extra print bed inserted inside the frame to print a height of 450mm.
Minimum layer height: 0,5 mm;
Maximum print speed: 150 mm/s;
Maximum travel speed: 150 mm/s;
Acceleration: 500 mm/s2;
MATERIALS
Material: ceramic mixtures including but not limited to
Clay
Porcelain
Sandstone
Earthenware
Also, different colours and mixtures
CONFIGURABLE TOOLS
LDM WASP Extruder: 1.5, 2, 3 mm nozzle diameter (standard)
LDM WASP Extruder XL: 4 mm, 6 mm, 8 mm nozzle diameter
SOFTWARE
Operative systems Windows, Mac, Linux
Official Slicing: Simplify3D®
Compatible Slicing: Cura, Slic3r and PrusaSlicer
File type .stl, .obj, .gcode
INTERFACE
SD Card – LCD Screen
PHYSICAL DIMENSIONS
Dimensions: 77 cm x 85 cm x h 195 cm (height of 270 cm with tank support)
Machine weight: 80 kg
Dimensions for shipping the machine with wooden packaging: 100 cm x 100 cm x 230 cm
Shipping weight 130 kg
POWER AND AIR COMPRESSOR REQUIREMENTS
Input 220/240 V 50/60 Hz
Consuming power: Approx. 200W
NOTE.: Air compressor is not supplied.
Air Compressor – min. pressure of 8 bar and 50 litres is needed
You will also need a Nylon Tube to a length you specify. You can buy it from the hardware store as it is 8mm OD or 5/16” External Diameter Nylon Tubing. If your compressor is in another room, just buy some longer tubing.
OPERATING TEMPERATURE
Printer to be used between 20-30 C°
Storage in warehouse 0-30 C°
MECHANICS
Frame and cover is Aluminium with Painted Steel outer plates
Wooden Multi Layer print bed
Movement
– Precision Nylon wheels on anodized Aluminium extrusions
– Steel cored TPU belts.
Motors – High Quality NEMA 17 Stepper
INCLUDED MATERIAL
LDM WASP extruder 3.0 with nozzle in metal diam. 1.5, 2, 3 mm.
A large 5 Litre Tank for the Clay Mixture
Print bed made from Marine Plywood
12.5 kg of Red Earthenware, more info here
AU Power cable
Packaging for national shipping in a cardboard box approximately 58 cm x 50 cm x 101 cm
EXTRA FEATURES
RESURRECTION SYSTEM (cc)
If the power gets interrupted at any stage in the print, when the power comes back on again the printer will restart heating the hot-end and heat-bed then the 3d print, in the same place the power cut out.
Read more about RESURRECTION SYSTEM here
FREE Z SYSTEM (cc)
In the case of an interruption, it’s possible to measure the height of your print and simply enter that height into the Free Z System in the display menu and restart the print from that exact height.
Read more about FREE Z SYSTEM here
WASP TECHNICAL INNOVATIONS
You can move the printer and not remove the object. Just move it above another print bed and start. This avoids waiting until your printed object has dried. You can print from ground or from 2 printing beds at different Heights. Our screw extruder has a precisely controlled dosage thanks to our screw design.
Controlled air pressure for the printer
Perfect stability thanks to new sliding-system on bearings
Compressed Air pipe connection is now integrated into the printer
Dedicated Firmware
